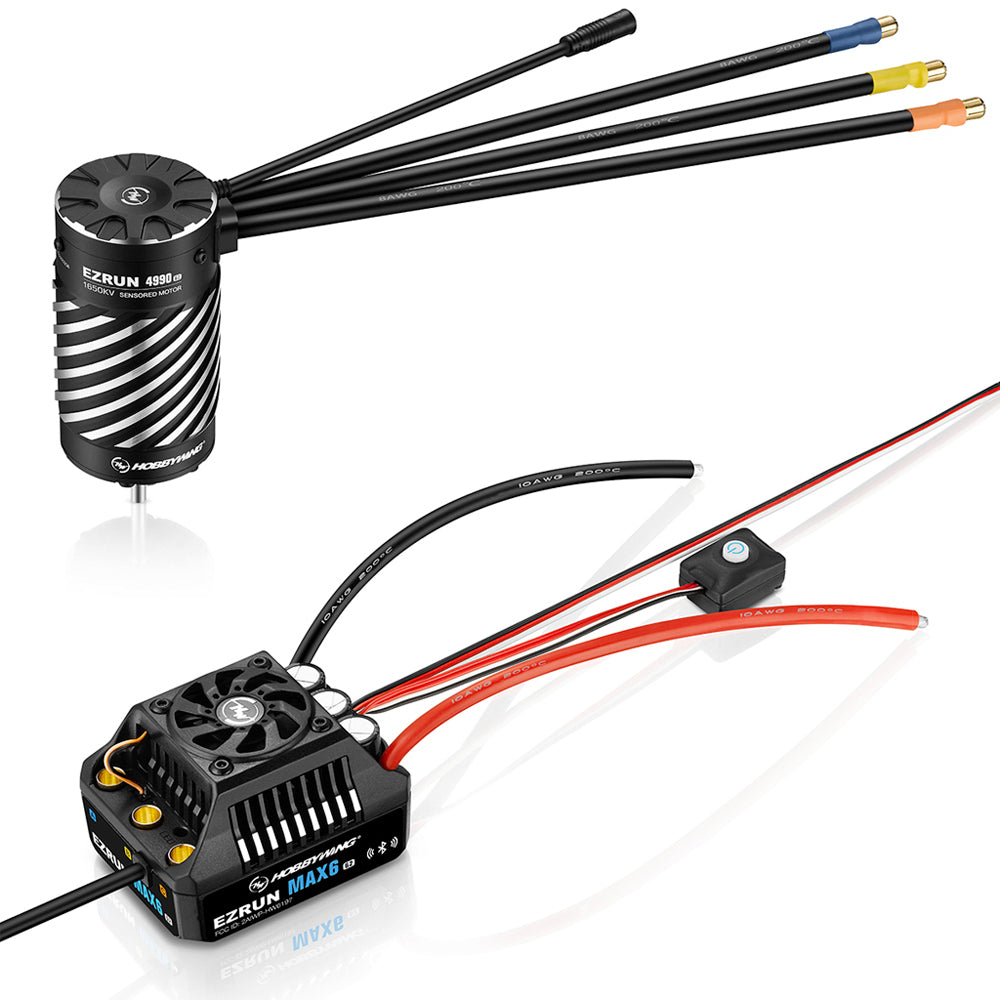

HobbyWing EZRUN Combo MAX6 G2 ESC w/4990SD 1650KV G2 Brushless Motor
Sorry, Currently Not in Stock
But don't worry we've got you covered! Enter your email below, and you'll be the first to know when this product is back. Stay ahead of the crowd and secure yours as soon as it's available again!
Couldn't load pickup availability
Collect 2519 J-Points Or £12 Off Next Order
Exclusive loyalty rewards for collectors and fans → Learn more
Description
Rewarding every enthusiast
You can earn and redeem Jadlam Rewards across our entire range of products. Every purchase brings you closer to your next reward.
View Rewards
Detailed Delivery Information
We use Royal Mail Tracked 48 as our main economy delivery service for all parcels. (Items classified as Large Letter by Royal Mail will be sent by Royal Mail 48).
This service aims to deliver within 2-3 working days and is tracked to the delivery point. SMS or email notifications will be sent to you if you have filled in the contact details on your order. This will allow you to view your delivery options prior to delivery and have advanced notice of a delivery day.
We aim to dispatch your order the same day if paid for before 2pm (excluding weekends and UK public holidays). Please note that if your order contains an item with a 1-2 day handling time your item will take longer to dispatch.
Once dispatched you will receive a notification and the item will then be delivered in the next 2-3 working days.
Delivery charges will be automatically calculated at the checkout page.
All product prices quoted are inclusive of VAT.
Please note that we cannot accept orders billed to or addressed to PO Boxes.
We will supply your email address and/or mobile number to the courier, they will use this to send you notification emails and SMS to let you know when your parcel will arrive.
*Where our Express/Next Day delivery service has been selected we aim to dispatch your goods from our warehouse in less than 1 working day of you placing your order (excluding weekends and UK public holidays). We will send you an email confirming when we have dispatched your order. Delivery will normally take 1-2 working days from the moment you place your order.
Please note that Express/Next Day delivery is a trackable service.
Delivery charges will be automatically calculated at the checkout page.
All product prices quoted are inclusive of VAT.
Please note that we can't accept orders billed to or addressed to PO Boxes.
Applies to: Northern Ireland, Channel Islands, Isle Of Man, Scottish Highlands & Islands, Scilly Isles.
Free on all orders under 5KG.
If your order weighs more than 5KG we will need to ship this via DPD which will incur a delivery charge of £9.99.
Please note this is only on orders over 5KG and most orders will come to less than 5KG.
Orders will be shipped on a 2 Day Service regardless of shipping option selected.
Shipping to Europe currently suspended due to changes with Brexit. More information due soon.
Shipping to Non European destinations is charged based on order value & order weight. In certain cases extra shipping charges may be required.
We aim to dispatch your goods from our warehouse within 2 working days of you placing your order (excluding weekends and UK public holidays). We will send you an email confirming when we have dispatched your order. Postal delivery will normally take a further 5 working days.
Delivery times and charges vary by country.
Multiple delivery addresses in the same order will result in multiple delivery charges.
When ordering goods from Jadlam Toys & models for delivery overseas you may be subject to import duties and taxes, which are levied once the package reaches the specified destination. Any additional charges for customs clearance must be borne by you; we have no control over these charges and cannot predict what they may be. Customs policies vary widely from country to country, so you should contact your local customs office for further information. Additionally, please note that when ordering from Jadlam Toys & Models, you are considered the importer of record and must comply with all laws and regulations of the country in which you are receiving the goods.
All product prices quoted are inclusive of VAT (Value Added Tax). VAT on non EU deliveries cannot be reclaimed.
Important Note on Delivery Times
We do everything we can to meet the delivery times specified in this section. However, occasionally delivery times may be affected by factors beyond the control of Jadlam Racing and therefore cannot be guaranteed.
Key Information at a Glance
Return unwanted items within 30 days (unopened).
We provide free return shipping for any faulty, damaged, or incorrectly sent items.
All returns must be initiated by completing our official Returns Form for efficient processing.
Ensure items are returned in 'as new' condition with original packaging to qualify for a full refund.
Can I return my item?
Not Wanted
An unwanted product can be returned for a full refund within 30 days of delivery as long as it’s still in its original, unopened packaging.
In accordance with your rights when you purchase goods online, unwanted items can be returned even if you have opened them for inspection as long as you let us know within 14 calendar days from the day after delivery. You can examine the goods as you would in a shop but to obtain a full refund you must not use them. The goods must be returned in ‘as new’ condition and in their original packaging. The packaging must not be ripped or damaged or we may refuse the return.
Returns and exchanges can only be processed with proof of purchase. Please provide your order number when you return a product.
You will be liable for the cost of returning the goods to us and must ensure that they are returned in protective packaging.
Faulty or Damaged
If you have received a damaged or faulty item from us you can return it for a repair, replacement or refund.
If the item is faulty or damaged we will cover the costs of the return shipping. Please contact us prior to returning so we can arrange a free returns label or resolve the fault you are experiencing.
Please make it clear what the issue is on our returns paperwork, as some minor issues may not be very clear to our returns department.
Some manufacturers prefer to deal with faulty items themselves, so returns may be sent directly to the manufacturer. This helps you get a replacement or repair faster.
Incorrect
An item received incorrectly can be returned for a refund or replacement. Please make it clear on the returns paperwork which action you would like us to take. If you do not complete this section, we will automatically issue a refund.
If the item is incorrect, we will cover the return shipping costs. Please complete a returns request form by clicking here and we will provide a returns shipping label for you.
What is your Returns Period?
You can return an item up to 30 days after the date of delivery.
EXTENDED CHRISTMAS RETURNS (covers all orders placed in November & December 2024) ends 31st January 2025.
How do I cancel my order?
If you choose to cancel an order that you have not yet received, please contact us via phone or email. Have your order number ready for quicker processing. Use "Cancellation Request" in your contact message.
We do our best to cancel orders quickly, but it's possible the order is dispatched before we process your request.
If your order has already shipped, you'll need to return it after receiving it. This will be treated as an unwanted return, and you’ll be responsible for return shipping costs.
What are my cancellation rights?
You may cancel an order from the moment it's placed until 14 days after you receive the goods.
Please contact us by phone or email to request a cancellation.
How do I start a return?
You need to complete our Returns Form. A member of our Returns Department will contact you with full instructions.
How do I return my item?
Please complete our Returns Form. We will contact you with instructions.
If you're arranging your own return, please use a tracked courier service. We cannot be held liable for undelivered returns. Reuse original packaging if possible, or make sure the item is well protected and dry in transit.
Check Royal Mail or parcel services like Parcel2Go for competitive rates.
How much does it cost to return an item?
The cost depends on the return reason:
- Unwanted item: You cover return shipping costs.
- Damaged/Faulty item: We cover the return shipping.
- Incorrect item: We cover the return shipping.
For self-paid returns, we recommend Royal Mail or Parcel2Go. A small tracked parcel via Royal Mail should cost around £5; courier options may range £7–10.
When we cover return shipping, we’ll send you a returns label. Complete the form by clicking here.
A restocking fee may apply for returns due to customer error or if items are returned in a condition different from what was stated.
Once your return is approved, you have 14 days to send the item. After that, the return is cancelled and no refund will be issued.
When will I be refunded?
We process refunds or replacements within 3–5 working days of receiving your return. If you used a tracked courier, you can confirm when the item was received. If you don’t hear from us within 7 working days, please get in touch.
How should I package my return?
We recommend reusing the original packaging. You must ensure the item is returned in protective packaging. Items returned damaged or without proper care may not qualify for a refund.
Complete Your Kit Recommended
Description
Suitable for vehicles such as the;
Losi 1/6 Super Baja Rey/Super Rock Rey，Traxxas XRT/X-MAXX/XO-1
ARRMA 1/7 Limitless/Fireteam/Felony/Infraction/Mojave，Cen 1/7 Reeper
ARRMA Kraton 8S/Outcast 8S，HPI Baja 5B
Sensored 8S ESC, Fully upgraded performance.
The Max6 G2 features Hobbywings new water proof sensor system, and also supports sensorless operation. Rated at up to 200 amps the Max6 G2 is ready to take on your high powered 8s builds. Powerful, smooth, with linear control through the entire RPM range. The ESC is suited for everything from hard starts, high speed runs, and low speed response that is unmatched. The motor supports up to 8S LiPo.
The maximum continuous output current is as high as 200A
Intelligent freewheeling technology, strong drive, low temperatures.
- Higher Driving Efficiency.
- Lower Operating Temperature.
- Ultra Dynamic Design.
The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency. At the same time, operating temperature is drastically lowered to improve overall stability and reliability of the ESC.
Remarks: Under heavy load conditions, the temperature of MAX6 G2 is comparable to that of MAX5 generation。
Built-in Bluetooth, connect directly to mobile APP.
The ESC has a built-in Bluetooth module. It is able to connect directly to the mobile phone APP without other devices for parameter setting, data reading, firmware upgrade and other operations.
User friendly ESC made simpler and convenient for users.
Remarks: The data includes throttle, voltage, current, temperature, rpm, etc.
Build in Data Recording with Graph.
The Max6 G2 has built in data recording and can record up to 10 minutes of Data. Using the HW Link V2 app, you will be able to review the saved data and review the runs complete with data Graph.
Note: Due to transmission distance of bluetooth, the effective distance is approximately 5m!
Intelligent fan start-stop function.
The Max 6 G2 features a smart fan circuit that only runs the fan when needed. The fan will remain "off" unless the ESC temperature requires air flow.
fan is off when the temperature of the ESC is low When the temperature of the ESC reaches the preset value the fan automatically turns on.
Applicable to All Weather Conditions.
The IP-67 waterproof rating guarantees excellent waterproof and dust-proof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
The overall protection level of the motor reaches IP67 Splash-proof Water-proof Dust-proof.
Remarks: The IP67 protection level mentioned above is splash-proof, waterproof, and dust-proof under normal usage. However, it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.
1/6th scale power system. Turbo timing technology.
The ESC is able to support up to 24degrees of Turbo Timing adjustment. There is an approximate of 20% increase in performance and is recommended to pair with the new HOBBYWING EzRun 4990/5690 G2 motors to get the best performance.
Note: For non-Hobbywing EZRUN 4990/5690 G2 motors, Turbo timing cannot be turned on.
Powerful BEC.
The ESC has a built-in super BEC with a maximum output current of up to 25A.The output voltages are switchable between 6V/7.4V/8.4V.This ensures that the ESC is able to support the demanding high-torque servos in the market.
With a maximum output current of up to 25A.
The output voltages are switchable between 6V/7.4V/8.4V
Built-in anti-spark design.
The ESC has a built-in anti-spark circuit to protect the battery plug from damaging upon using a higher voltage battery(6-8S) and avoids any injuries.
Perfect combination with EzRun 4990/5690 G2 motor
Achieve the perfect compatibility using it together with EzRun 4990/5690 G2 motors. Avoid damaging the motor from overheating with the software protection function.
Note: Non-Hobbywing EZRUN 4990/5690 G2 motors is unable to detect motor overheat protection
ESC Specifications
Scale - 1/6th, 1/7th
Brushed/Brushless - BL
Sensored/Sensorless/ - SD
Waterproof - Yes
Cont./Peak Current - 200A/1100A
Input
3-8S LiPo
BEC Output
Switch Mode:6V/7.4V/8.4V @8A
Wires & Connectors
Input Wires - Black-10AWG-200MMmm*1 Red-10AWG-200MMmm*1
Input Connectors - 6.5mm Connectors (Female)
ESC Programming via
SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD G2 Program Box - Not Supported
OTA Programmer - Not Supported
Programming Port - Built in Bluetooth
Fan
Size - 35x35x10mm
Output Wires - 5-8.4V
Input Connectors - Powered by BEC
Firmware
Firmware Upgrade - Supported
Size & Weight
Size - 70X56X45.5mm
Weight - 245g (Including input wires)
Applications
Motors - 1/6th&1/7th On-road,Truck,Monster Truck
Vehicles
Losi 1/6 Super Baja Rey/Super Rock Rey，Traxxas XRT/X-MAXX/XO-1
ARRMA 1/7 Limitless/Fireteam/Felony/Infraction/Mojave，Cen 1/7 Reeper
ARRMA Kraton 8S/Outcast 8S，HPI Baja 5B
Motor Information:
Elegant Appearance
The motor casing adopts an innovatively spiral groove heat dissipation structure. It not only has good heat dissipation, but visually appealing.
8S Sensored Motor
Wider Adaptability
Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC's that have larger sized 8mm motor plugs like the Max5 G2.
New Sensor Line Interface
All Weather Operation Capability
All weather sensor plug system
The EzRun 4990/5690 is equiped with the HOBBYWING all weather sensor harness that makes all conditions, water proof, sensored combos a reality. This proven sensor harness keeps the elements out so your system can maintain fully sensored operation even in the worst conditions.
Note:
The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.
Module design for easy maintenance
The motor adopts a modular structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.
Motor Specification
Scale - 1/7th-1/8th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4
KV Rating - 1650KV
LiPo - 3-8s
No-load Current(A) - 7.0A
O.D. (mm) - 49
Length (mm) - 90
Shaft Diameter (mm) - 5
Weight (g) - 701g
Front Bearing - D19*D6*T6
Rear Bearing - D19*D6*T6
Timing - Fixed
Applications -
1/7th On-road,Short course truck,Truck
1/8th Heavy-duty Monster truck
Examples: ARRMA Mojave/ Kraton 6S/Outcast 6S，
Traxxas XRT/X-MAXX
Rewards
Rewarding every enthusiast
You can earn and redeem Jadlam Rewards across our entire range of products. Every purchase brings you closer to your next reward.
View RewardsDelivery
Detailed Delivery Information
We use Royal Mail Tracked 48 as our main economy delivery service for all parcels. (Items classified as Large Letter by Royal Mail will be sent by Royal Mail 48).
This service aims to deliver within 2-3 working days and is tracked to the delivery point. SMS or email notifications will be sent to you if you have filled in the contact details on your order. This will allow you to view your delivery options prior to delivery and have advanced notice of a delivery day.
We aim to dispatch your order the same day if paid for before 2pm (excluding weekends and UK public holidays). Please note that if your order contains an item with a 1-2 day handling time your item will take longer to dispatch.
Once dispatched you will receive a notification and the item will then be delivered in the next 2-3 working days.
Delivery charges will be automatically calculated at the checkout page.
All product prices quoted are inclusive of VAT.
Please note that we cannot accept orders billed to or addressed to PO Boxes.
We will supply your email address and/or mobile number to the courier, they will use this to send you notification emails and SMS to let you know when your parcel will arrive.
*Where our Express/Next Day delivery service has been selected we aim to dispatch your goods from our warehouse in less than 1 working day of you placing your order (excluding weekends and UK public holidays). We will send you an email confirming when we have dispatched your order. Delivery will normally take 1-2 working days from the moment you place your order.
Please note that Express/Next Day delivery is a trackable service.
Delivery charges will be automatically calculated at the checkout page.
All product prices quoted are inclusive of VAT.
Please note that we can't accept orders billed to or addressed to PO Boxes.
Applies to: Northern Ireland, Channel Islands, Isle Of Man, Scottish Highlands & Islands, Scilly Isles.
Free on all orders under 5KG.
If your order weighs more than 5KG we will need to ship this via DPD which will incur a delivery charge of £9.99.
Please note this is only on orders over 5KG and most orders will come to less than 5KG.
Orders will be shipped on a 2 Day Service regardless of shipping option selected.
Shipping to Europe currently suspended due to changes with Brexit. More information due soon.
Shipping to Non European destinations is charged based on order value & order weight. In certain cases extra shipping charges may be required.
We aim to dispatch your goods from our warehouse within 2 working days of you placing your order (excluding weekends and UK public holidays). We will send you an email confirming when we have dispatched your order. Postal delivery will normally take a further 5 working days.
Delivery times and charges vary by country.
Multiple delivery addresses in the same order will result in multiple delivery charges.
When ordering goods from Jadlam Toys & models for delivery overseas you may be subject to import duties and taxes, which are levied once the package reaches the specified destination. Any additional charges for customs clearance must be borne by you; we have no control over these charges and cannot predict what they may be. Customs policies vary widely from country to country, so you should contact your local customs office for further information. Additionally, please note that when ordering from Jadlam Toys & Models, you are considered the importer of record and must comply with all laws and regulations of the country in which you are receiving the goods.
All product prices quoted are inclusive of VAT (Value Added Tax). VAT on non EU deliveries cannot be reclaimed.
Important Note on Delivery Times
We do everything we can to meet the delivery times specified in this section. However, occasionally delivery times may be affected by factors beyond the control of Jadlam Racing and therefore cannot be guaranteed.
Returns
Key Information at a Glance
Return unwanted items within 30 days (unopened).
We provide free return shipping for any faulty, damaged, or incorrectly sent items.
All returns must be initiated by completing our official Returns Form for efficient processing.
Ensure items are returned in 'as new' condition with original packaging to qualify for a full refund.
Can I return my item?
Not Wanted
An unwanted product can be returned for a full refund within 30 days of delivery as long as it’s still in its original, unopened packaging.
In accordance with your rights when you purchase goods online, unwanted items can be returned even if you have opened them for inspection as long as you let us know within 14 calendar days from the day after delivery. You can examine the goods as you would in a shop but to obtain a full refund you must not use them. The goods must be returned in ‘as new’ condition and in their original packaging. The packaging must not be ripped or damaged or we may refuse the return.
Returns and exchanges can only be processed with proof of purchase. Please provide your order number when you return a product.
You will be liable for the cost of returning the goods to us and must ensure that they are returned in protective packaging.
Faulty or Damaged
If you have received a damaged or faulty item from us you can return it for a repair, replacement or refund.
If the item is faulty or damaged we will cover the costs of the return shipping. Please contact us prior to returning so we can arrange a free returns label or resolve the fault you are experiencing.
Please make it clear what the issue is on our returns paperwork, as some minor issues may not be very clear to our returns department.
Some manufacturers prefer to deal with faulty items themselves, so returns may be sent directly to the manufacturer. This helps you get a replacement or repair faster.
Incorrect
An item received incorrectly can be returned for a refund or replacement. Please make it clear on the returns paperwork which action you would like us to take. If you do not complete this section, we will automatically issue a refund.
If the item is incorrect, we will cover the return shipping costs. Please complete a returns request form by clicking here and we will provide a returns shipping label for you.
What is your Returns Period?
You can return an item up to 30 days after the date of delivery.
EXTENDED CHRISTMAS RETURNS (covers all orders placed in November & December 2024) ends 31st January 2025.
How do I cancel my order?
If you choose to cancel an order that you have not yet received, please contact us via phone or email. Have your order number ready for quicker processing. Use "Cancellation Request" in your contact message.
We do our best to cancel orders quickly, but it's possible the order is dispatched before we process your request.
If your order has already shipped, you'll need to return it after receiving it. This will be treated as an unwanted return, and you’ll be responsible for return shipping costs.
What are my cancellation rights?
You may cancel an order from the moment it's placed until 14 days after you receive the goods.
Please contact us by phone or email to request a cancellation.
How do I start a return?
You need to complete our Returns Form. A member of our Returns Department will contact you with full instructions.
How do I return my item?
Please complete our Returns Form. We will contact you with instructions.
If you're arranging your own return, please use a tracked courier service. We cannot be held liable for undelivered returns. Reuse original packaging if possible, or make sure the item is well protected and dry in transit.
Check Royal Mail or parcel services like Parcel2Go for competitive rates.
How much does it cost to return an item?
The cost depends on the return reason:
- Unwanted item: You cover return shipping costs.
- Damaged/Faulty item: We cover the return shipping.
- Incorrect item: We cover the return shipping.
For self-paid returns, we recommend Royal Mail or Parcel2Go. A small tracked parcel via Royal Mail should cost around £5; courier options may range £7–10.
When we cover return shipping, we’ll send you a returns label. Complete the form by clicking here.
A restocking fee may apply for returns due to customer error or if items are returned in a condition different from what was stated.
Once your return is approved, you have 14 days to send the item. After that, the return is cancelled and no refund will be issued.
When will I be refunded?
We process refunds or replacements within 3–5 working days of receiving your return. If you used a tracked courier, you can confirm when the item was received. If you don’t hear from us within 7 working days, please get in touch.
How should I package my return?
We recommend reusing the original packaging. You must ensure the item is returned in protective packaging. Items returned damaged or without proper care may not qualify for a refund.
Your Hobby, Our Passion
We're a family-owned business passionate about inspiring play and creativity for everyone, from hobbyists to young builders. Our team is here to help you find the perfect toys, models, and RC vehicles. Let’s create special memories together!
Your Satisfaction Guaranteed
We stand behind every product we sell with a 30-day, no-hassle return policy. Shop with confidence knowing that your happiness is guaranteed.
Passionate Experts
Our team in Glastonbury lives and breathes models, RC, and toys. We're here to share our knowledge and help you find the perfect toy, model, or gift.
Unmatched Selection
Immerse yourself in a world of possibilities with our extensive collection of top-tier models, RC vehicles, and toys, handpicked from the best brands to ignite your passion and creativity.
Decades of Experience
With a legacy spanning 25 years, we're proud to have served generations of hobbyists, families, and kids, helping them discover the joy of building, playing, and creating.
